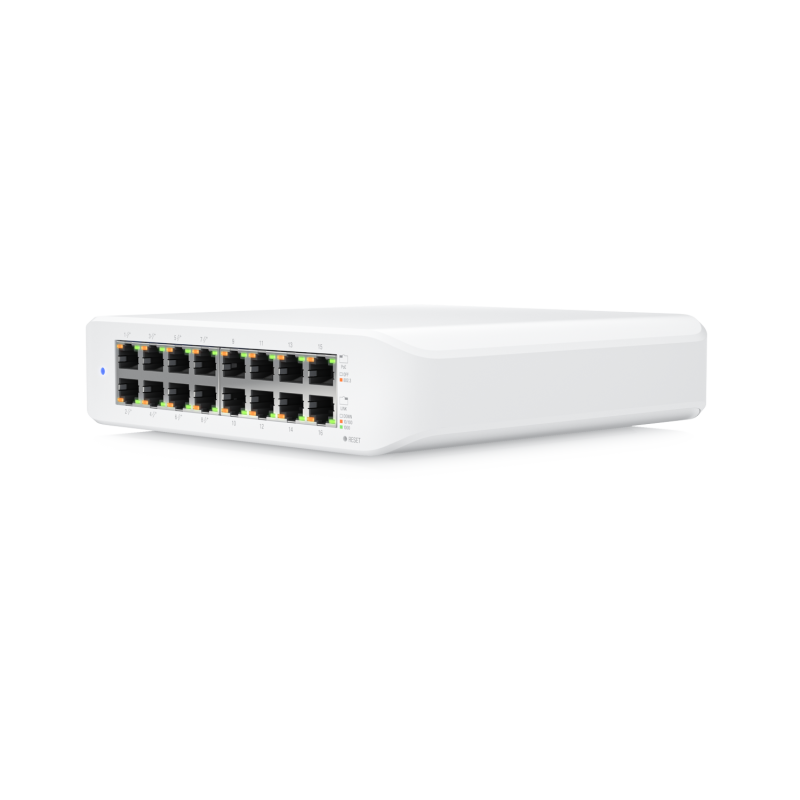

Ubiquiti UniFi Lite 16 PoE
- Brand: Ubiquiti
- Product Code: Lite 16 PoE
- Availability: In Stock
$315.99CAD
Dimensions
192 x 185 x 44 mm (7.6 x 7.3 x 1.7")
Port Layout
1 GbE RJ45
16 (8 PoE+) (1G/100M/10M)
Max. PoE Output
Up to PoE+
Total PoE Availability
45W
Form Factor
Compact desktop, wall
Switching Capacity
32 Gbps
Total Non-Blocking Throughput
16 Gbps
Forwarding Rate
24 Mpps
Supported VLANs
1,000
MAC Address Table Size
8,000
Packet Buffer Size
0.5 MB
Access Lists
IPv4
128
MAC
128
LACP Port Aggregation
✓
STP & RSTP
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓
PoE Ports
PoE+
8
Max. PoE Wattage per Port by PSE
PoE+
32W
Max. Power Consumption
15W (Excluding PoE Output) 60W (Including PoE Output)
Power Method
Universal input, 100—240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
AC/DC, internal, 60W
Supported Voltage Range
100—240V AC
Management
Ethernet
Heat Dissipation
51.2 (Excluding PoE Output)
Weight
1.2 kg (2.6 lb)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Supported Rack Depth
400~1200 mm (15.7-47.2")
Ambient Operating Temperature
-15 to 40° C (5 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 04479-21-08356
Application Requirements
UniFi Network
Version 7.2.94 and later
