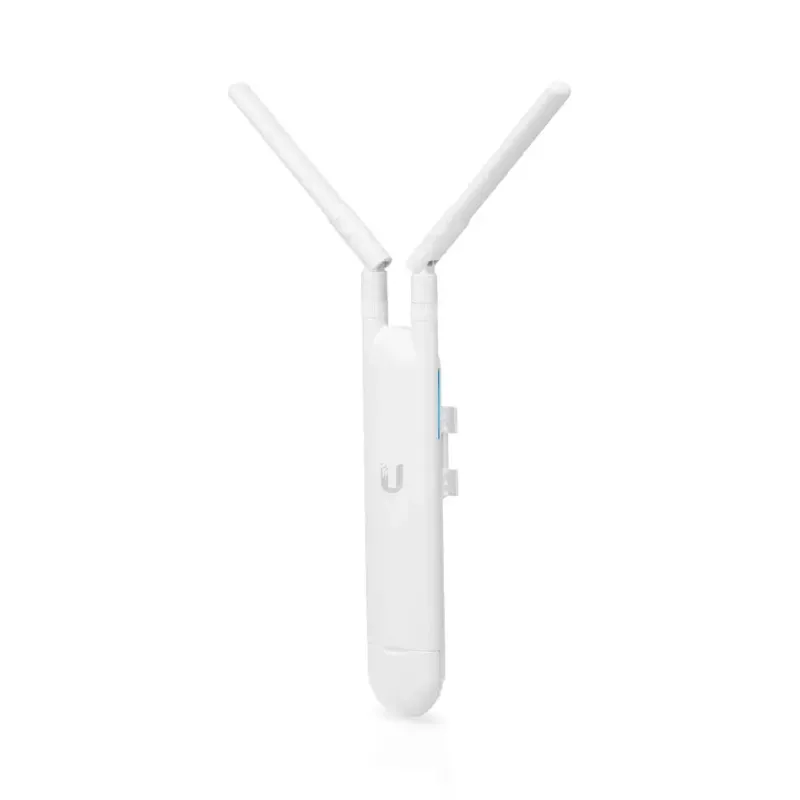

Compact, indoor/outdoor WiFi 5 AP with 4 spatial streams and optional external antenna support for directional coverage.
Note. PoE power adapter included with single unit purchase.
UMA-D external antenna accessory offers directional coverage.
Dimensions
353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4")
WiFi Standard
WiFi 5
Spatial Streams
4
Coverage Area
140 m² (1,500 ft²)
Max. Client Count
200+
Uplink
GbE
Mounting
Wall, Pole (Mounts Included)
Weatherproofing
IPX4
Power Method
PoE
MIMO
5 GHz
2 x 2 (DL MU-MIMO)
2.4 GHz
2 x 2 (DL MU-MIMO)
Max. Data Rate
5 GHz
867 Mbps (BW80)
2.4 GHz
300 Mbps (BW40)
Antenna Gain
5 GHz
4 dBi
2.4 GHz
3 dBi
Max. TX Power
5 GHz
20 dBm
2.4 GHz
20 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11ac (WiFi 5)
6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓
Max. Power Consumption
8.5W
Includes PoE Adapter
✓
Supported Voltage Range
44—57V DC
Networking Interface
(1) GbE RJ45 port
Weight
152 g (5.4 oz)
Pole Mount Diameter
1–3" (25–76 mm)
Management
Ethernet Bluetooth
Enclosure Material
Polycarbonate
Channel Bandwidth
HT 20/40, VHT 20/40/80 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC, UKCA, Anatel
Operating Frequency
US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz
Ambient Operating Temperature
-30 to 70° C (-22 to 158° F)
Ambient Operating Humidity
5 to 95% noncondensing
