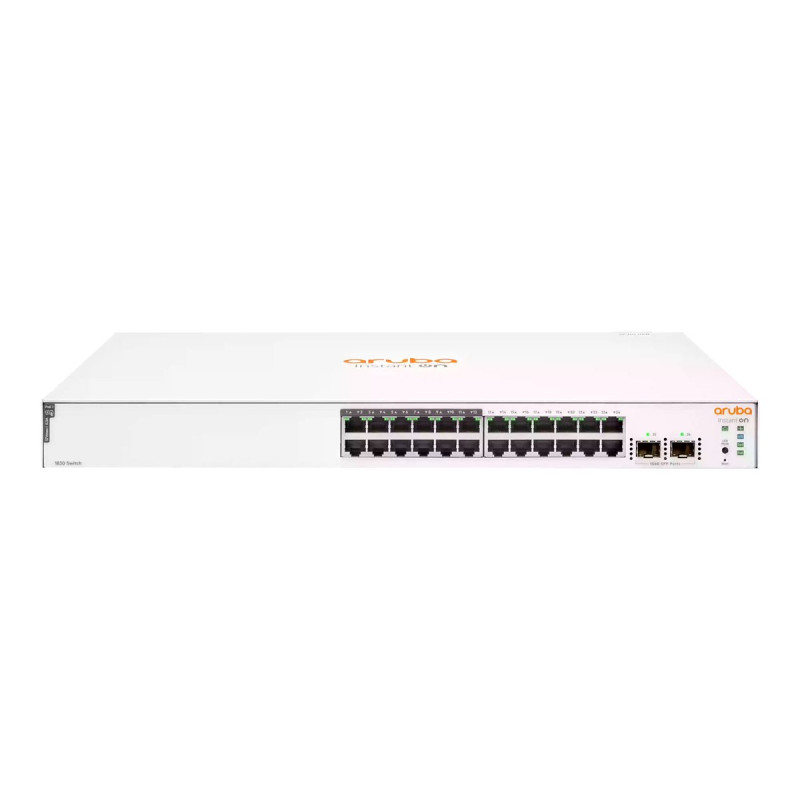

HPE Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch - Switch - smart - 12 x 10/100/1000 + 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP - desktop, rack-mountable - PoE+ (195 W)
- Brand: HP Aruba
- Product Code: JL813AABA
- Availability: In Stock
$619.00CAD
- Primary Information
Product Description: HPE Networking Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch - switch - 24 ports - smart - rack-mountable Device Type: Switch - 24 ports - smart Enclosure Type: Rack-mountable 1U Subtype: Gigabit Ethernet Ports: 12 x 10/100/1000 + 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP Power Over Ethernet (PoE): PoE+ PoE Budget: 195 W Performance: Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 2.8 µs ¦ Throughput: 38.68 Mpps ¦ Switching capacity: 52 Gbps MAC Address Table Size: 16000 entries Jumbo Frame Support: 9216 bytes Routing Protocol: IGMP, IGMPv2 Remote Management Protocol: HTTP, HTTPS, ICMP, SNMP 1, SNMP 2c, SCP, TFTP Features: Auto-sensing per device, 1.5MB packet buffer, wall mountable, Cable Diagnostics Function, event log, Syslog support, dual image support, EEE, SCP, Global Storm Control, BPDU Filter, DoS protection, flow control, IGMP snooping, Link Aggregation, LLDP support, loop protection, port mirroring, STP support, TPM, VLAN support, Port Scheduling, auto-negotiation, auto-uplink (auto MDI/MDI-X), CoS, cloud managed, DHCP client, firmware upgradable, QoS, SNTP support Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at Power: AC 100-240 V (50/60 Hz) Dimensions (WxDxH): 17.4 in x 10 in x 1.7 in Weight: 7.65 lbs Localization: English / United States Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Switch - 24 ports - smart Enclosure Type: Desktop, rack-mountable 1U Subtype: Gigabit Ethernet Ports: 12 x 10/100/1000 + 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP Power Over Ethernet (PoE): PoE+ PoE Budget: 195 W Performance: Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 2.8 µs ¦ Throughput: 38.68 Mpps ¦ Switching capacity: 52 Gbps MAC Address Table Size: 16000 entries Jumbo Frame Support: 9216 bytes Routing Protocol: IGMP, IGMPv2 Remote Management Protocol: HTTP, HTTPS, ICMP, SNMP 1, SNMP 2c, SCP, TFTP Encryption Algorithm: SSL Features: Auto-sensing per device, 1.5MB packet buffer, wall mountable, Cable Diagnostics Function, event log, Syslog support, dual image support, EEE, SCP, Global Storm Control, BPDU Filter, DoS protection, flow control, IGMP snooping, Link Aggregation, LLDP support, loop protection, port mirroring, STP support, TPM, VLAN support, Port Scheduling, auto-negotiation, auto-uplink (auto MDI/MDI-X), CoS, cloud managed, DHCP client, firmware upgradable, QoS, SNTP support Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at Processor: 1 x ARM: 800 MHz RAM: 512 MB SDRAM Flash Memory: 256 MB Status Indicators: Port status, link/activity, speed, port duplex mode - Expansion / Connectivity
Interfaces: 12 x 1000Base-T RJ-45 ¦ 2 x Gigabit LAN SFP ¦ 12 x 1000Base-T RJ-45 PoE+ - Power
Power Device: Internal power supply Voltage Required: AC 100-240 V (50/60 Hz) Power Consumption Operational: 244.6 Watt - Miscellaneous
MTBF: 96.6 years Compliant Standards: AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 62368-1 Second Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, CISPR 32 Class A, CISPR 35, CNS 13438 Class A, EN 55032:2015, EN 55035, FCC CFR47 Part 15 B Class A 2018, ICES-003 Class A, IEC 61000-3-2, IEC 61000-3-3, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, IEC/EN 60825-1:2014 Class 1, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, KN32 Class A, KN35, UL 62368-1 Second Edition, UL 62368-1 Third Edition, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, EN 61000-3-3 Localization: English / United States - Dimensions & Weight
Width: 17.4 in Depth: 10 in Height: 1.7 in Weight: 7.65 lbs - Manufacturer Warranty
Service & Support: Limited warranty - lifetime ¦ Technical support - live chat - lifetime ¦ Technical support - phone consulting - 90 days from date of purchase - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 15 - 95% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 158 °F Humidity Range Storage: 15 - 95% (non-condensing)
